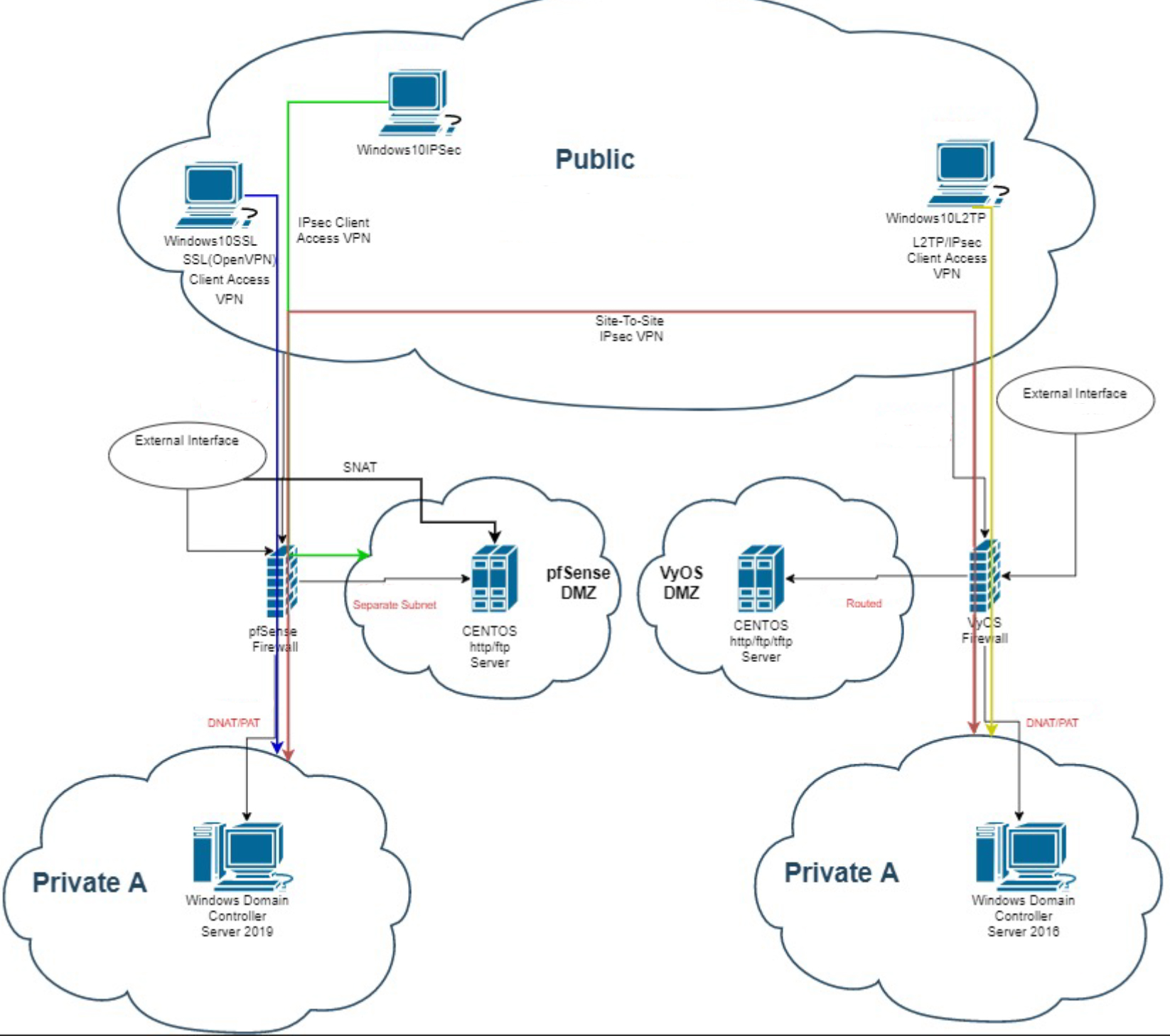

This lab is expanding upon the firewalls lab. Same network diagram is used for this lab as well. The lab enviorement was configured on a VMware vSphere server.

In order to allow authentication for the client-access VPNs RADIUS was configured on Active Directory domain controllers. Moving on, IPsec site-to-site VPN was configured using IKEv2 to provide VPN access between the private networks attached to the firewalls. This was configured on both VyOS and PfSense firewalls.

Next, an IPsec client-access VPN was properly configured using IKEv1 to provide VPN access from the Windows10IPsec virtual machine to the pfSense-side DMZ. After configuring the VPN and implementing the proper firewall rules on pfSense, a Shrew Soft VPN client was installed and configured accordingly on the Windows10IPsec virtual machine. This client-access VPN was tested by demonstrating access to an Apache server located within the pfSense-side DMZ, which was inaccessible from other public clients.

Next, an L2TP client-access VPN was properly configured to provide VPN access from the Windows10L2TP virtual machine to the Private B network. It was configured to use the RADIUS server in the Private B network for authentication. After configuring the VPN and implementing the proper firewall rules on VyOS, a VPN connection was added to the Windows10L2TP using the built-in Windows 10 VPN settings. This client-access VPN was tested by demonstrating access to an IIS server located within the Private B network, which was inaccessible from other public clients.

Finally, an OpenVPN client-access VPN was properly configured to provide VPN access from the Windows10SSL virtual machine to the Private A network. It was configured to use the RADIUS server in the Private A network for authentication. After configuring the VPN and implementing the proper firewall rules on pfSense, and OpenVPN GUI VPN client was installed and configured using a client configuration file generated by the OpenVPN pfSense package. This client-access VPN was tested by demonstrating access to an IIS server located within the Private A network, which was inaccessible from other public clients. Continuation of this lab can be found on intrusion detection page.

• VPN ProtocolsOpenVPN, IPSec Site-to-Site, IPSec Client-Access, L2TP over IPSec
